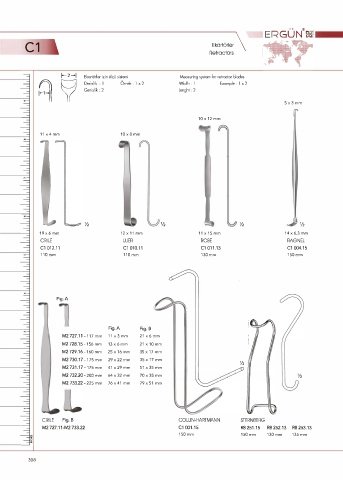

P. 320
ERGUN oai
®
C1 Retractors
Ekartörler \
q� E Derinlik : l Örnek : l x 2 Width : l Example : l x 2
1-2-1
artörler için ölçü sistemi
k
Measuring system for retractor blades
Lenght: 2
Genişlik: 2
5x3 mm
10 x 12 mm
11 x 4 mm 10 x 8 mm
½ ½ ½ ½
19 x 6 mm 12 x 11 mm 11 x 15 mm 14 x 6,3 mm
CRILE LUER ROSE RAGNEL
C1 012.11 C1 010.11 C1 011.13 C1 004.15
110mm 110mm 130mm 150mm
Fig.A
Fig.A Fig. B
M2 727.11 -117mm 11 x 3 mm 21 x 6 mm
M2 728.15 -156 mm 13 x6 mm 21x10mm
M2 729.16-160 mm 25x16mm 35 x 17 mm
M2 730.17 -175 mm 29 x 22 mm 35 x 17 mm ½
M2 731.17-175mm 41 x 29 mm 51 x 35 mm
M2 732.20 -200 mm 64x 32 mm 70 x 35 mm ½
M2 733.22 -225 mm 76x41 mm 79 x 51 mm
CRILE Fig. B COLLIN-HARTMANN STERNBERG
M2 727 .11-M2 733.22 C1 001.15 R8251.15 R8252.13 R8253.13
150 mm 150 mm 130 mm 135 mm
308
