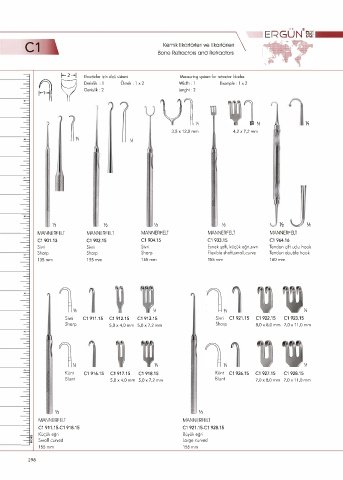

C1 Bone Retractors and Retractors \
Kemik Ekartörleri ve Ekartörleri

q� Derinlik : l Örnek : l x 2 Width : l Example : l x 2
1
1
-2-
Ekartörler için ölçü sistemi
Measuring system for retractor blades
Genişlik: 2
Lenght: 2

vı½ ½
3,5 x 12,0 mm 4,2 x 7,2 mm
½

½ ½ ½ ½ ½ ½
MANNERFELT MANNERFELT MANNERFELT MANNERFELT MANNERFELT
C1 901.13 C1 902.15 C1 904.15 C1 933.15 C1 964.16
Sivri Sivri Sivri Esnek şaft, küçük eğri,sivri Tendon çift uçlu hook
Sharp Sharp Sharp Flexible shaft,small,curve Tendon double hook
135 mm 155 mm 155 mm 155 mm 160 mm

½ ½
Sivri C1 911.15 C1 912.15 C1 913.15 Sivri C1 921.15 C1 922.15 C1 923.15
Sharp 5,0 x 4,0 mm 5,0 x 7,2 mm Sharp 8,0 x 8,0 mm 7,0 x 11,0 mm

½ ½
Künt C1 916.15 C1 917.15 C1 918.15 Künt C1 926.15 C1 927.15 C1 928.15
Blunt 5,0 x 4,0 mm 5,0 x 7,2 mm Blunt 7,0 x 8,0 mm 7,0 x 11,0 mm

½ ½
MANNERFELT MANNERFELT
C1 911.15-C1 918.15 C1 921.15-C1 928.15
Küçük eğri Büyük eğri
Small curved Large curved
155 mm 155mm

298
